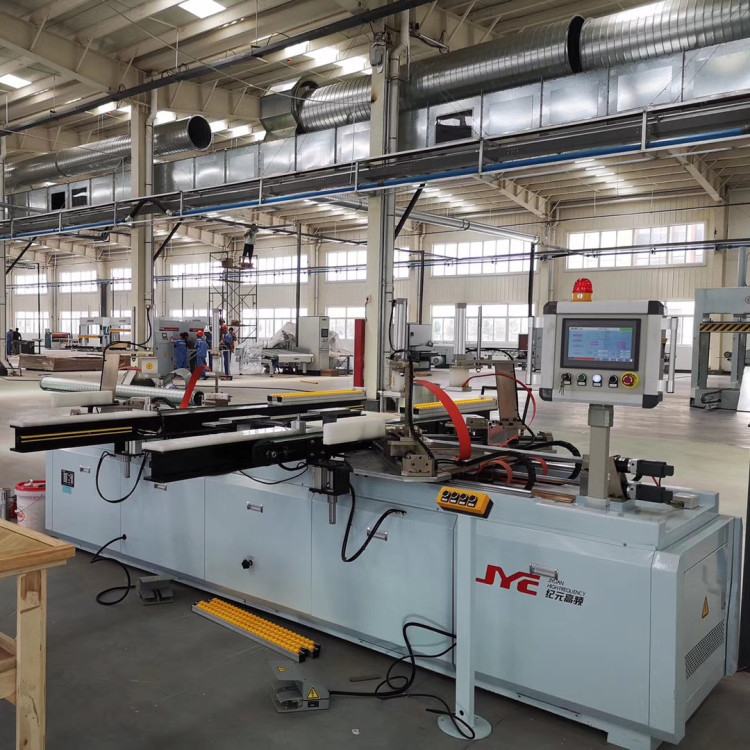

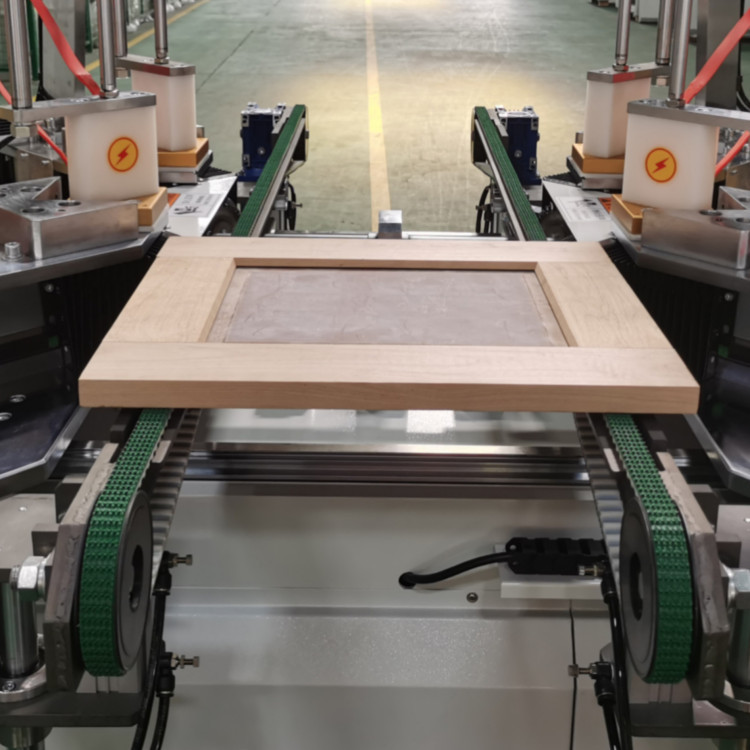

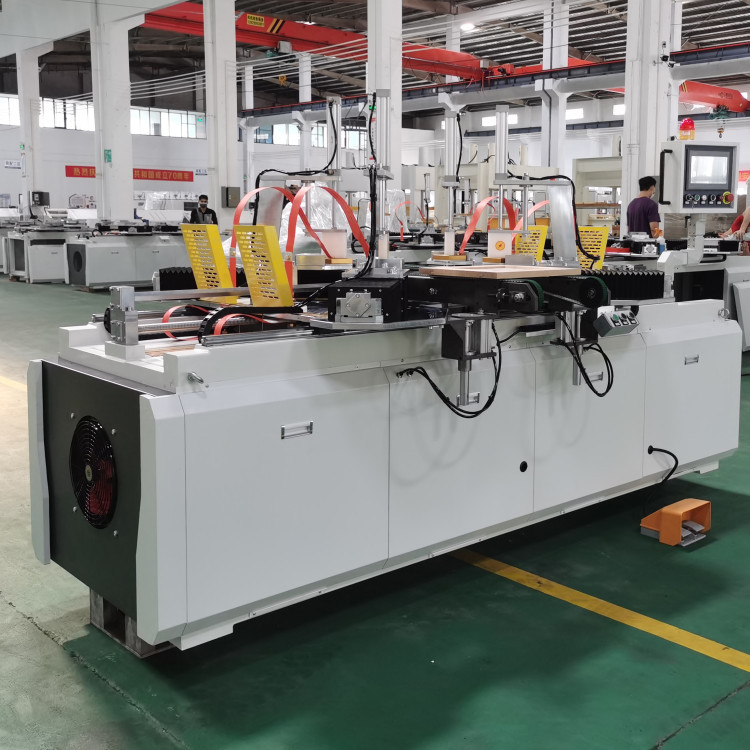

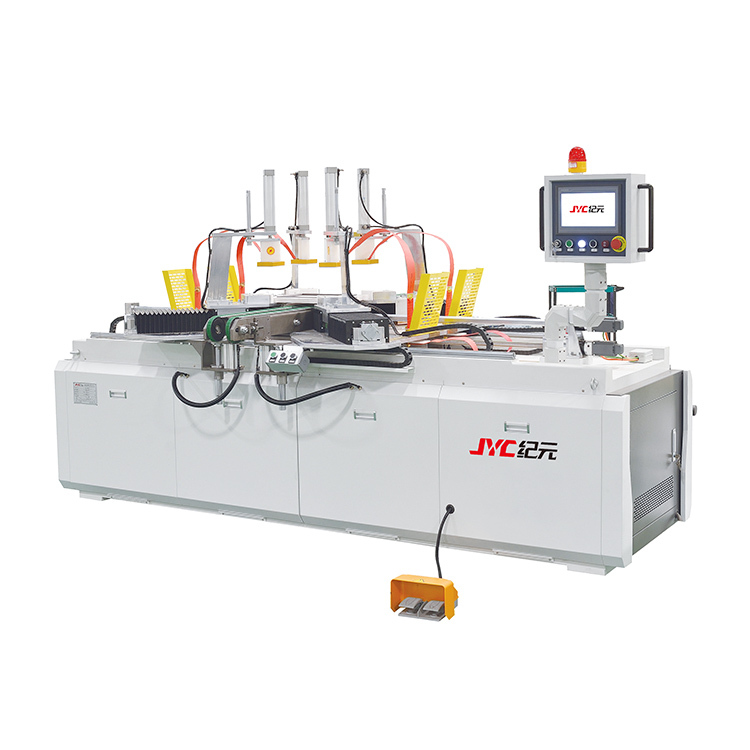

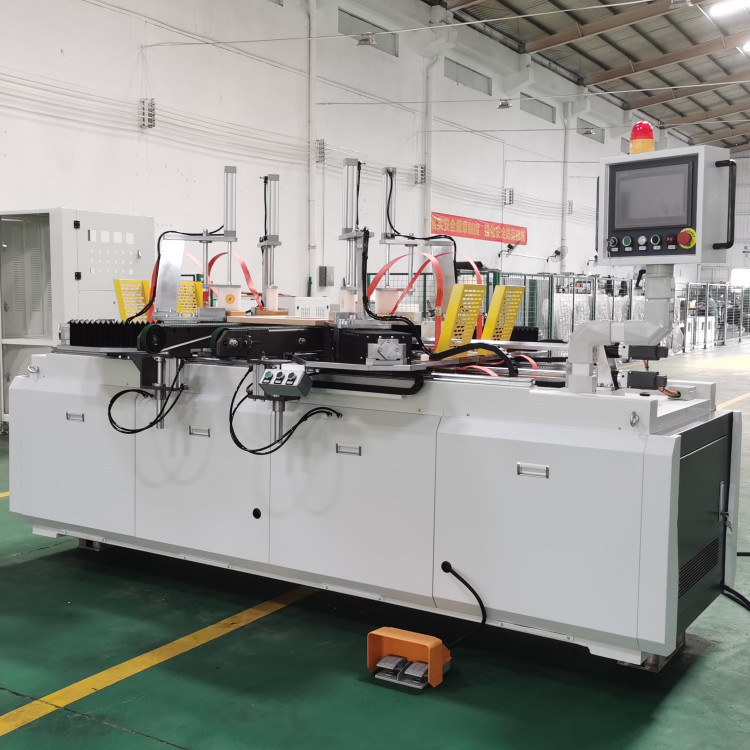

Automatic Discharging Wooden Frame Assembly Machine
High frequency frame assembly machine with automatic discharging, which is more suitable for connecting with the production line, and increasing production.
- JYC
- China
- 40 Days
- 200 Set per year
- Information
HF Automatic Discharging Wooden Frame Assembly Machine
Details
The automatic discharging HF precision frame assembly machine is suitable for fast assembly of wood/bamboo frame products such as doors and windows etc.
Features
1. Suitable for fast splicing and assembling of frames such as doors and windows.
2. Assemble the doors and windows quickly and with high accuracy.
3. Automatic discharging, and can be connected with the production line.
4. Heat the glue seams only, more efficiently.
5. Using Siemens servo motor to ensure product accuracy.
Technical Specification
| Model | GJJ1808-Sa-5-JY | GJJ2808-Sa-5-JY |
| Power Supply | AC 380V,50Hz | |
| HF Power | 5KW | |
| HF Frequency | 6.78MHz | |
| Max Working Size | 1800mm*800mm | 2800mm*800mm |
Min Working Size | 220mm*150mm | |
| Overall Size | 2800mm*1100mm*1600mm | 3800mm*1450mm*1950mm |
| Discharging Way | Belt conveyor | |
We can provide professional suggestions and customized services. Welcome to inquiry!
