HF Wood Interior Door Assembly Automatic Production Line
JYC Wooden door laminating production line solution suitable for laminating assembly of wood doors such as interior wood doors, office countertops, door panels, etc. Automatic control, 1 hour can produce 480pcs wooden doors, high-efficiency assembly wooden door.
- JYC
- China
- 40 Days
- 200 Set per year
- Information
HF Wood Interior Door Assembly Automatic Production Line
Details
JYC Wooden door laminating production line solution suitable for laminating assembly of wood doors such as interior wood doors, office countertops, door panels, etc. Automatic control, 1 hour can produce 480pcs wooden doors, high-efficiency assembly wooden door.

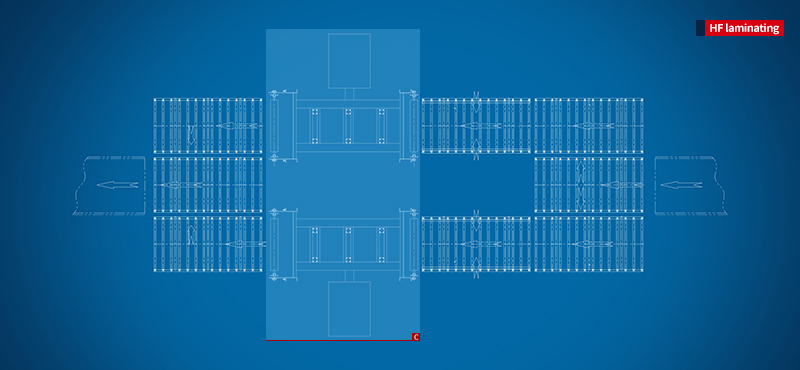

The process of JYC high frequency wooden door laminating production line solution:
1. Gluing and feeding process section: The glue spreader applies glue to two panels.
2. Panel laminating process section: Laminate the panel with the coreboard of the door.
3. High frequency heating process section: Fast curing the panel with the coreboard of the door.
4. Automatic discharge process section: Automatic discharging to the sorting area.
Technical Specification
| Model | GP-1 |
| Capacity output | 480pcs/8h |
| Staffing | 2 worker |
| HF Power | 30KW |
| Working Table Size | 2500*1250mm |
Pressure Configuration | 50T |
| Process Flow | Whole line |
We can provide professional suggestions and customized services. Welcome to inquiry!
