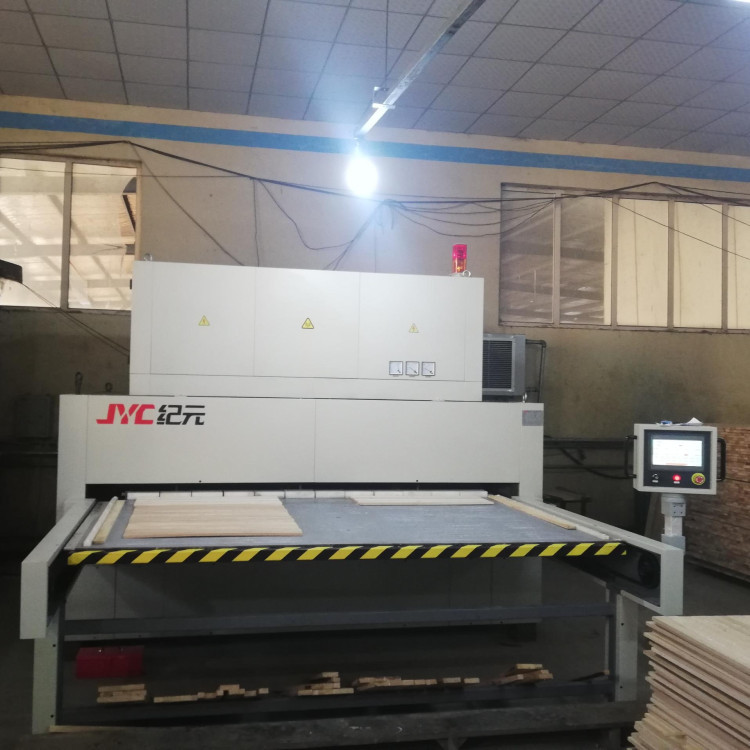

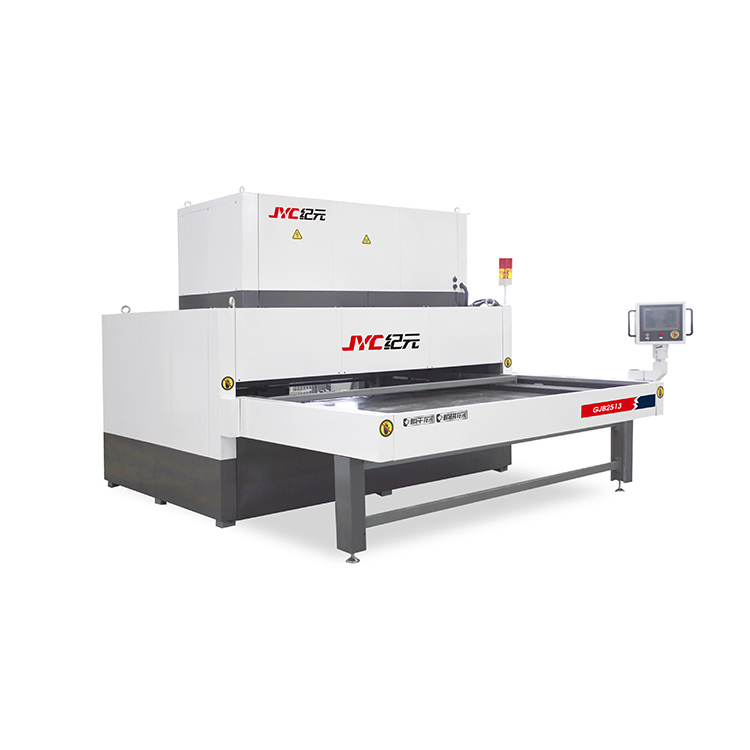

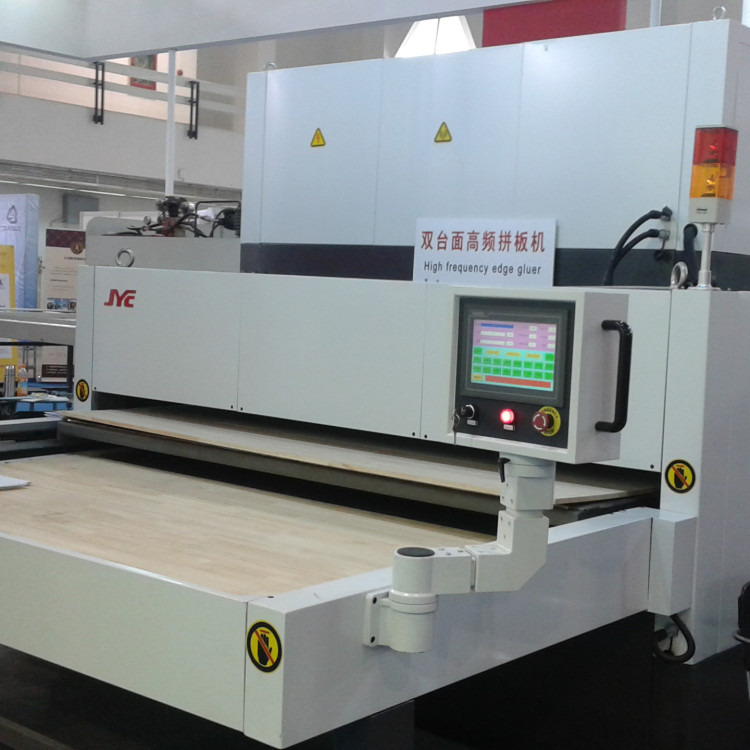

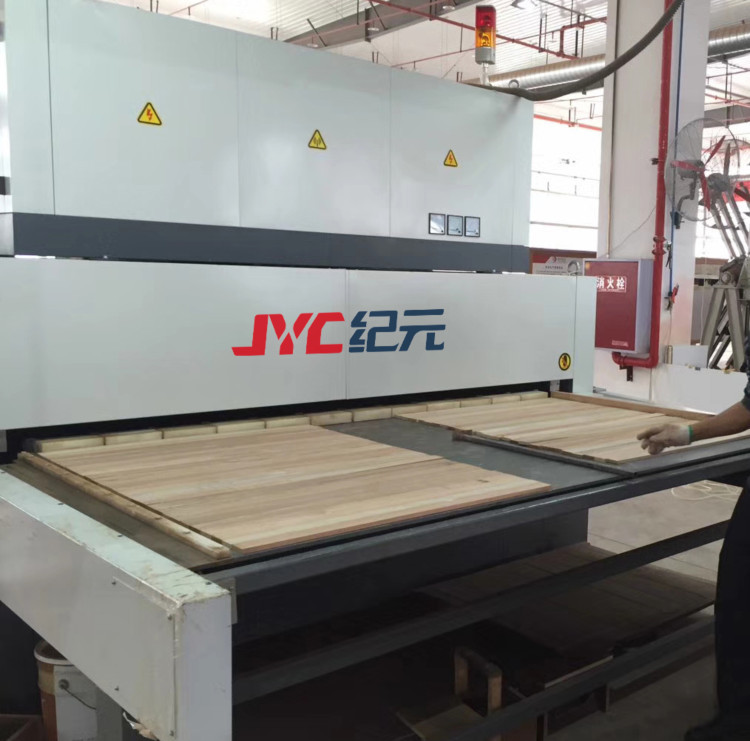

HF Wood Panel Joining Machine With Double Working Table
High frequency wooden board joining machine with the double working table, it can place the material and join at the same time by alternating in and out of the working table, more efficient to work.
- JYC
- China
- 40 Days
- 200 Set per year
- Information
HF Wood Panel Joining Machine With Double Working Table
Details
This HF wooden board joining machine has double working table for alternate used to place the boards and HF joining at the same time, with less footprint, which is more efficient.
Features
1. Two work tables alternate in and out. Boards can be placed and HF can join at the same time.
2. The working table is also the board place table. To avoid misplacement of the feeding boards.
3. Suitable for various length specifications.
4. One-button operation, easily joining. Two-way pressing, High yield rate.
5. The equipment occupies a small area. Greater space utilization.
Technical Specification
| Model | GJB2513-S56-JY |
| Power Supply | AC 380V 50Hz |
| HF Power | 20KW/30KW |
| HF Frequency | 6.78-13.56MHz |
| Processing Size | 2500*1300mm |
Processing Thickness | 10-60mm |
| Vertical Pressure | 20T |
| Horizontal Pressure | 36T |
| Feeding Method | Alternating double countertops |
We can provide professional suggestions and customized services. Welcome to inquiry!
