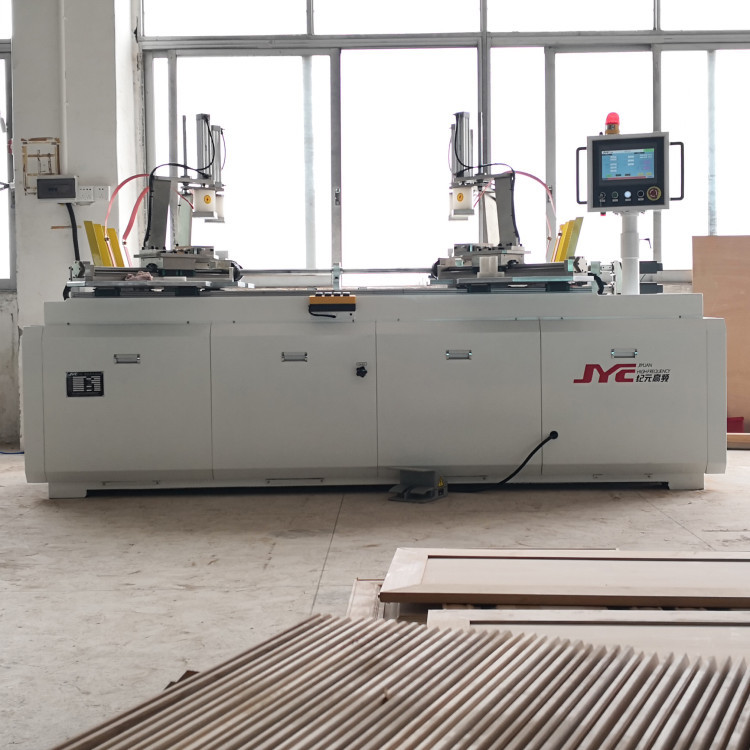

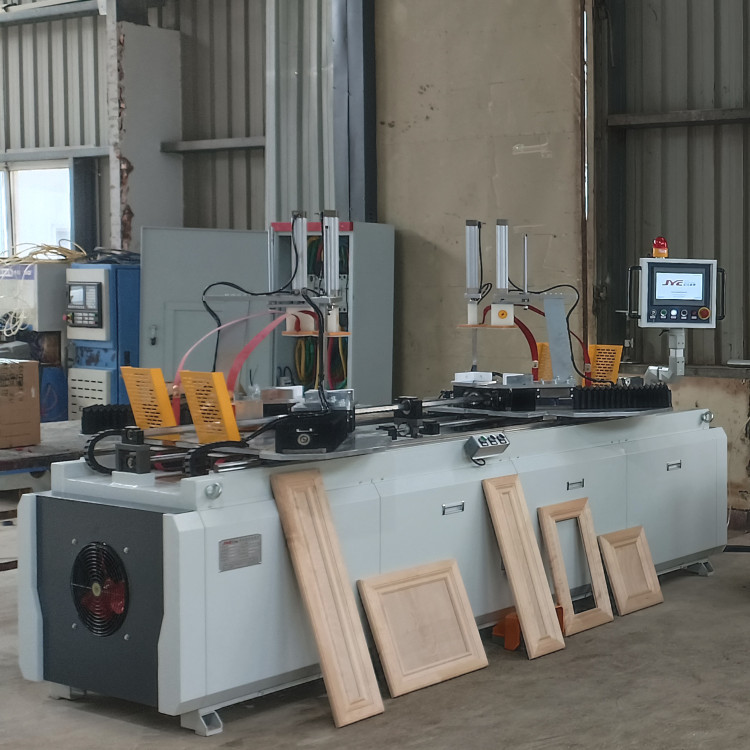

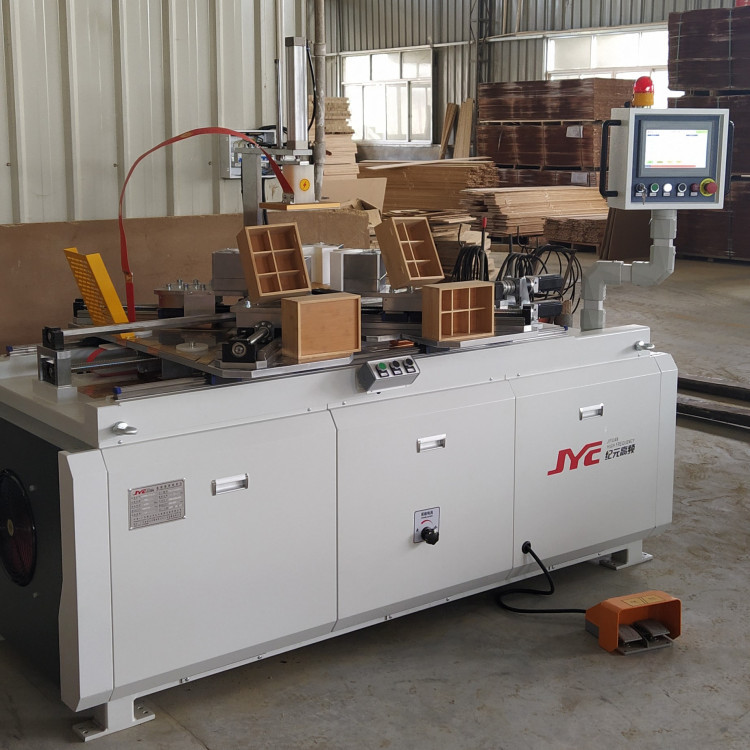

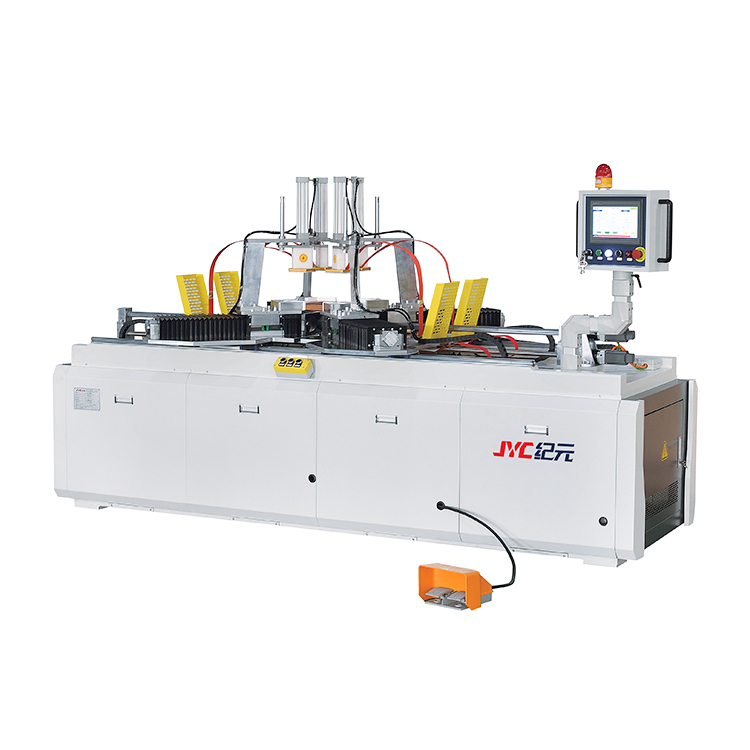

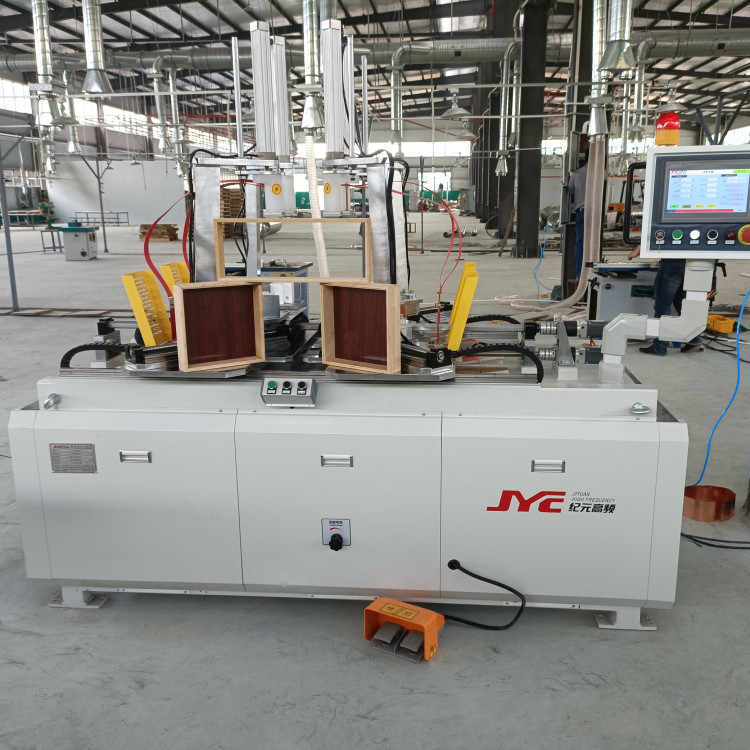

4 Heating Points Wooden Frame Assembly Machine

High frequency 4 points frame assembly machine can heat for assembly of 4-point bamboo or wooden box and photo frame and can achieve highly efficient mass assembly.

  • JYC
  • China
  • 40 Days
  • 200 Set per year
  • Information

HF 4 Heating Points Wooden Frame Assembly Machine

Details

HF 4 points frame assembly machine is suitable for the quick assembly of bamboo wood boxes and photo frames. Easy to operate.


wood photo frame assembly machine


Features

1. Suitable for the quick assembly of the bamboo wood box and photo frame.

2. Annealing finish, and electroplating for the working table, more durable.

3. The partition of the box can be heated at the same time.

4. One button operation, heat automatically.

5. Support remote assistance, realize remote maintenance, and system upgrades.


Technical Specification

ModelGJJ1808-S-5-JYGJJ2808-S-5-JY
Power SupplyAC 380V,50Hz
HF Power5KW
HF Frequency
6.78MHz
Max Working Size1800mm*800mm2800mm*800mm

Min Working Size

150mm*150mm
Overall Size2800mm*1100mm*1600mm3800mm*1450mm*1950mm


We can provide professional suggestions and customized services. Welcome to inquiry!
