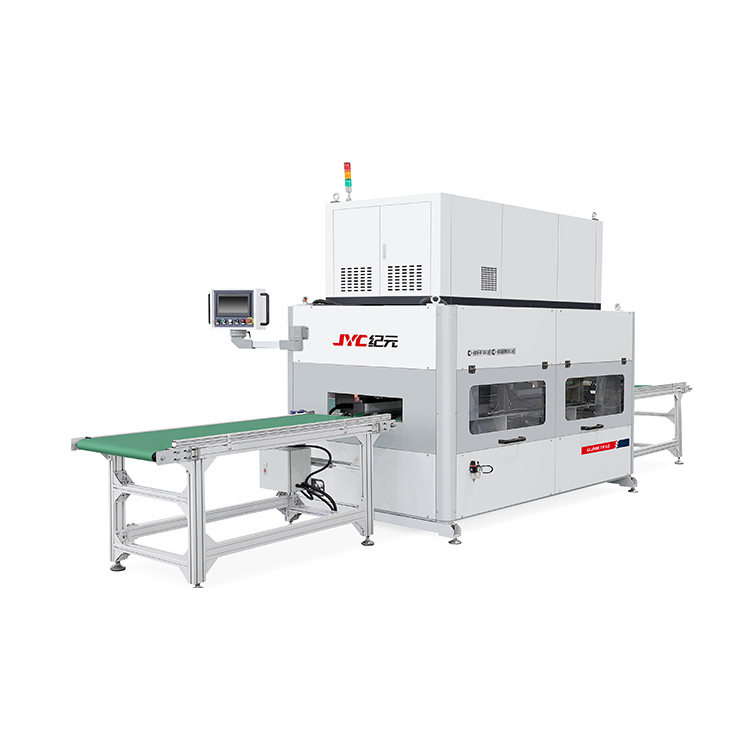

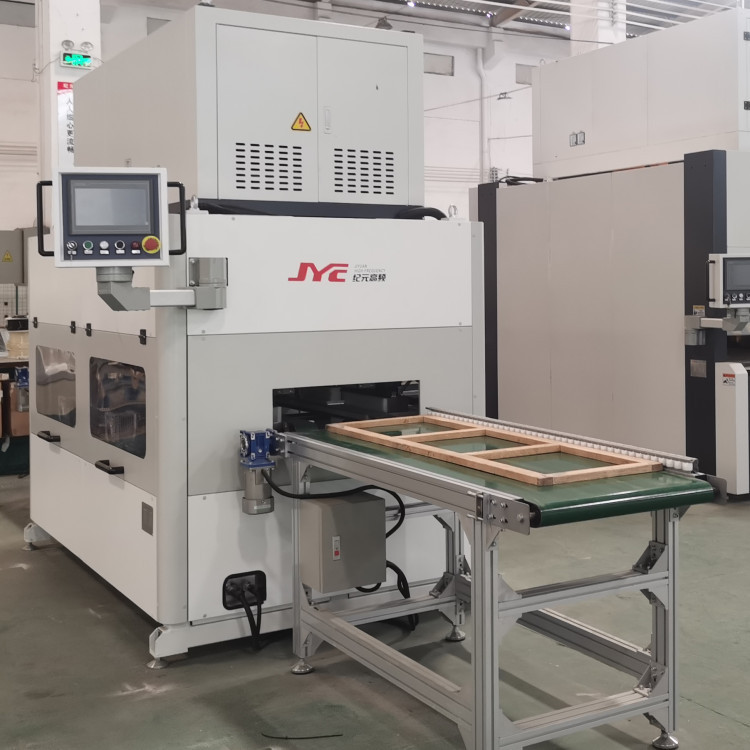

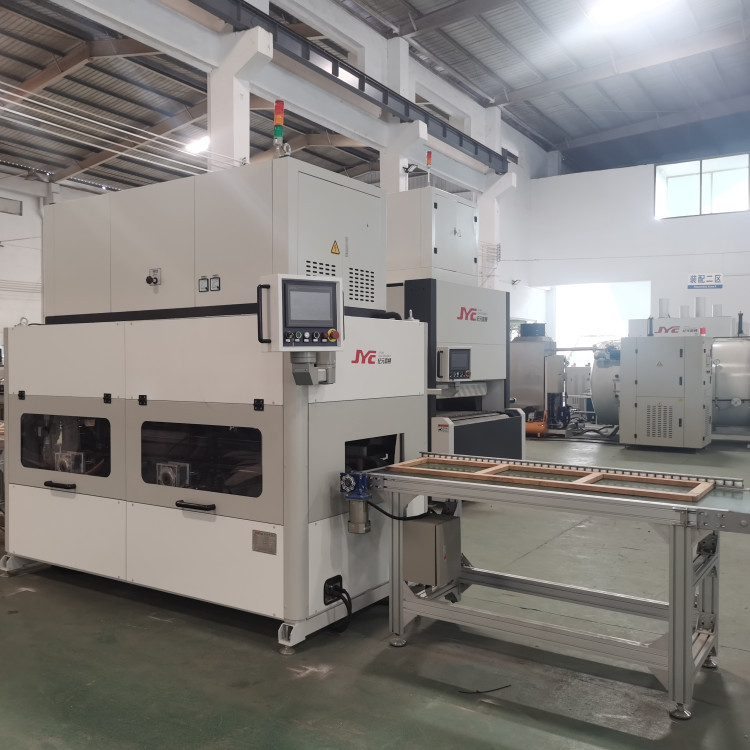

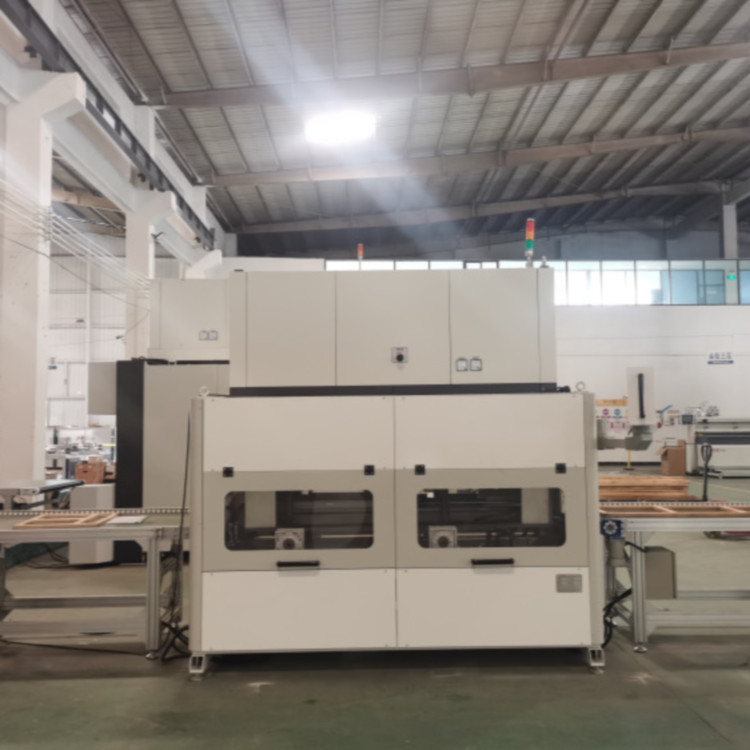

High Frequency Pass Through Wooden Frame Assembly Machine
Pass-through high frequency frame assembly machine more automatic than other frame assembly machines, can HF heat multi-point and several workpieces be assembled at the same time.
- JYC
- China
- 40 Days
- 200 Set per year
- Information
High Frequency Pass Through Wooden Frame Assembly Machine
Details

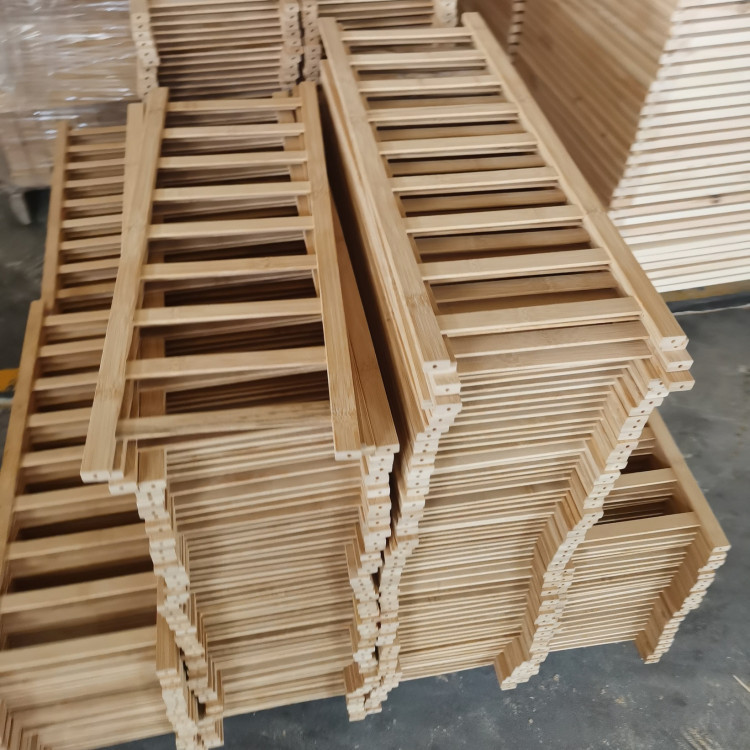

This high frequency frame assembly machine uses a pass-through type to assemble, saves more effort, and automatic control increases production. It is suitable for the assembly of wood frame products such as wooden fences, wooden windows, etc.
Features
1. Full automatic control, production capacity can be more than 1800pcs/8h.
2. Two-dimension pressurization. Several working pieces can be assembled at the same time.
3. Multi-point glue seams can be HF heated at the same time.
4. Using the high-power servo motor, double rail pressurization.
5. It can be operated single machine and also can be connected to the production line, supporting remote maintenance.
Technical Specification
| Model | GJMK1605-5-JY | GJMK1911-10-JY |
| Power Supply | AC 380V,50Hz | |
| HF Power | 5KW/10KW | |
| HF Frequency | 6.78MHz | |
| Pressurized Method | Servo motor | |
Delivery Method | Automatic pass | |
| Processing Size | 1600mm*500mm | 1900mm*1100mm |
We can provide professional suggestions and customized services. Welcome to inquiry!
