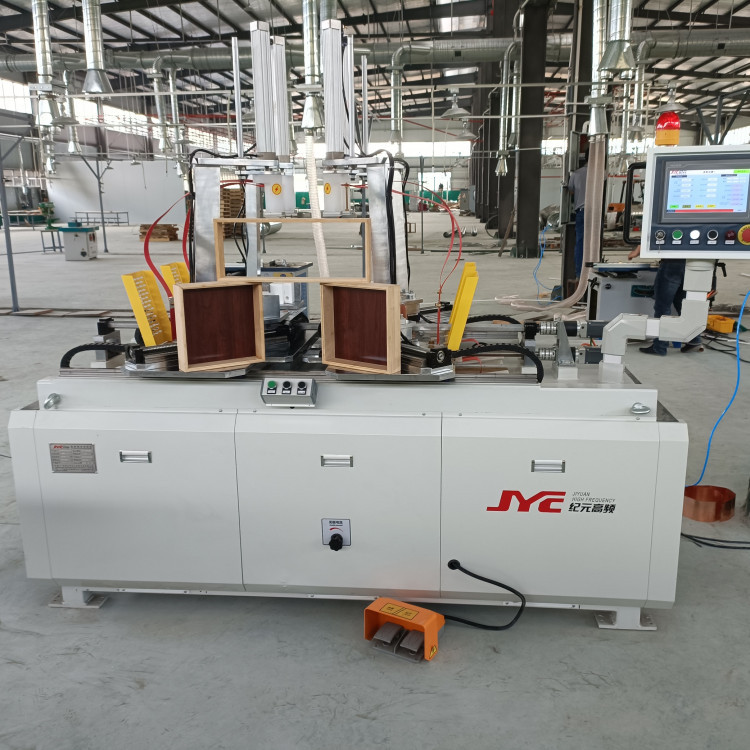

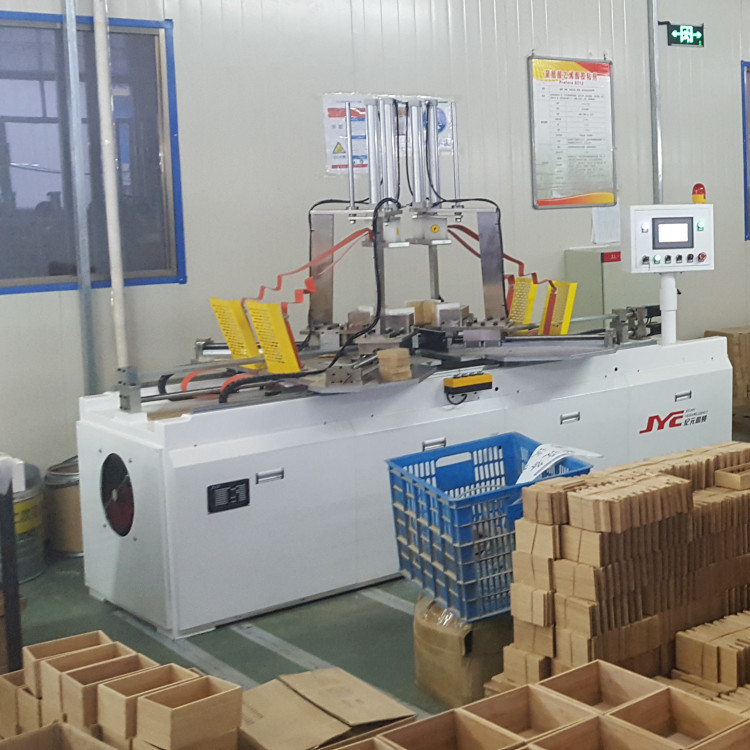

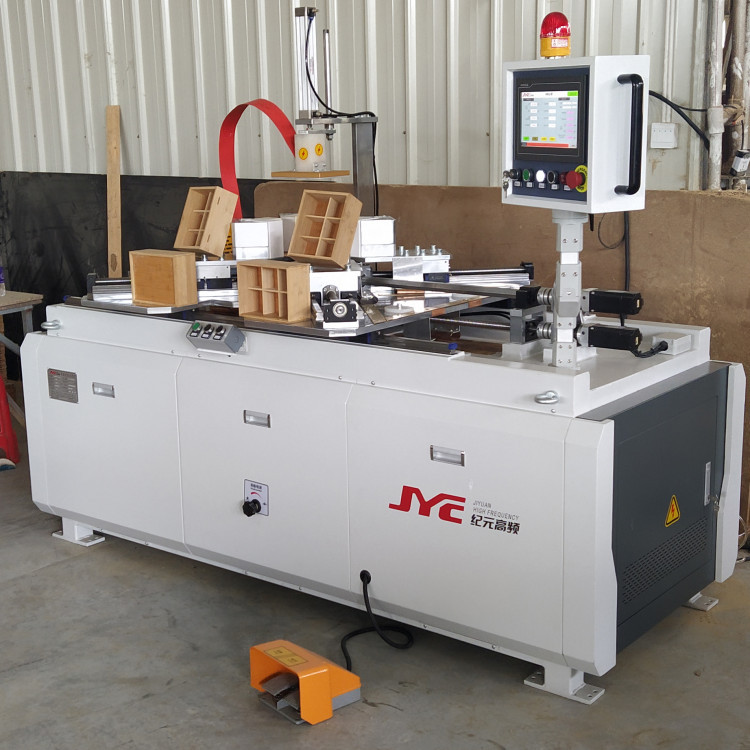

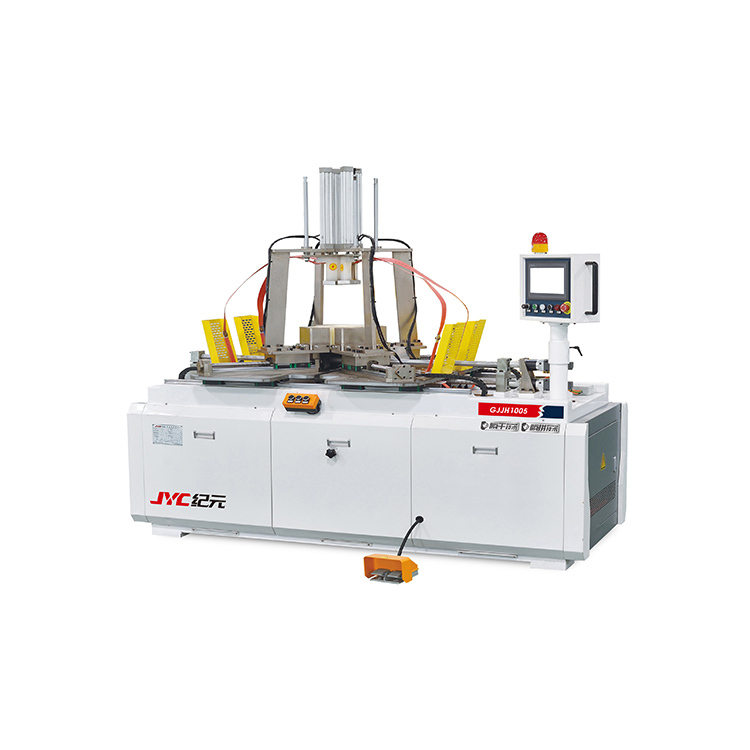

High Frequency Wooden Photo Frame Assembly Machine
High frequency box/photo frame assembly machine can heat for assembly of bamboo or wooden boxes and photo frames and can achieve highly efficient mass assembly.
- JYC
- China
- 40 Days
- 200 Set per year
- Information
High Frequency Wooden Photo Frame Assembly Machine
Details

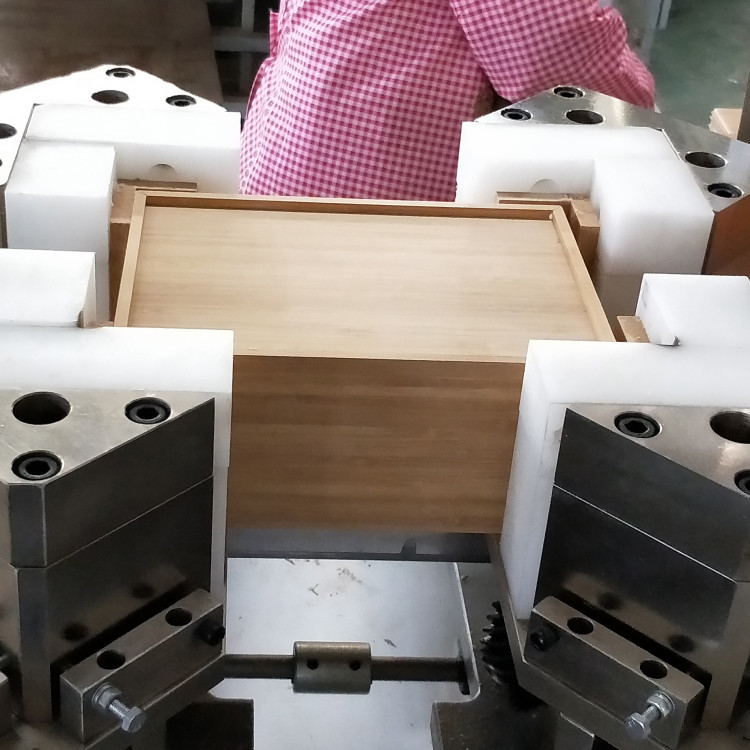

This high frequency precision frame assembly machine is suitable for the quick assembly of bamboo wood boxes and photo frames.
Features
1. Suitable for the quick assembly of the bamboo wood box and photo frame.
2. Can connect box assembly+above and bottom panel laminating production line.
3. The partition of the box can be heated at the same time.
4. One button operation, heat automatically.
5. Support remote assistance, realize remote maintenance, and system upgrade.
Technical Specification
| Model | GJJH1005-S-5-JY |
| Power Supply | AC 380V, 50Hz |
| HF Power | 5KW |
| HF Frequency | 6.78MHz-27.12MHz |
| Max Working Size | 1000mm*500mm |
Min Working Size | 120mm*120mm |
| Max Working Thickness | 120mm |
| Overall Size | 2100mm*1100mm*1600mm |
We can provide professional suggestions and customized services. Welcome to inquiry!
